Introduction: Graphite wound gaskets are the most widely used type of metal wound gaskets. Metal graphite wound gaskets usually refer to metal wound gaskets, which are made of high-quality SUS304, SUS316 ("V" shape or "W" shape) metal strips and other alloy materials and graphite, asbestos, polytetrafluoroethylene, non-asbestos and other soft materials alternately and overlappingly spirally wound, and the metal strips are fixed by spot welding at the beginning and end.
Main uses of graphite wound gaskets: Metal graphite wound gaskets are used for sealing of pipes, valves, pump inlets and outlets, various heat exchangers, reaction towers, observation holes, hand holes and other parts that are in contact with steam, oil and gas, solvents, gases, heat transfer media, etc.
Metal graphite wound gaskets use temperature; -200℃ to 650℃.
Metal graphite wound gaskets have varieties and specifications: basic type, with inner ring, with outer ring, with inner and outer rings, special-shaped and other specifications. Size, thickness 3.2, 4.5mm. Nominal diameter, ￠10—￠2000mm
Characteristics of carbon graphite products for machinery:
1. Excellent self-lubrication;
2. Good resistance to chemical corrosion;
3. High thermal conductivity and thermal stability;
4. Sufficient mechanical strength and impact resistance; easy to machine, can be processed into products of various geometric shapes as required.
Graphite wound gaskets are the most widely used type of metal wound gaskets. Metal graphite wound gaskets usually refer to metal wound gaskets, which are made of high-quality SUS304, SUS316 ("V" shape or "W" shape) metal strips and other alloy materials and graphite, asbestos, polytetrafluoroethylene, non-asbestos and other soft materials alternately and overlappingly spirally wound, and the metal strips are fixed at the beginning and end by spot welding.

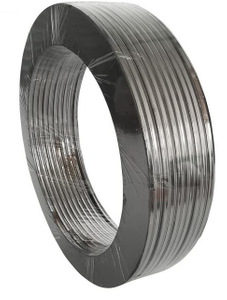

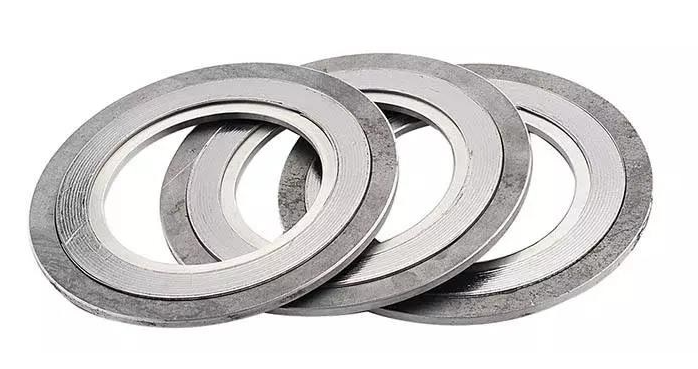

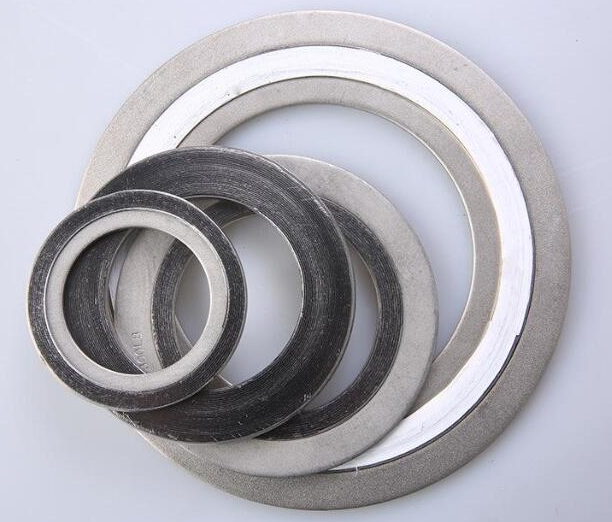

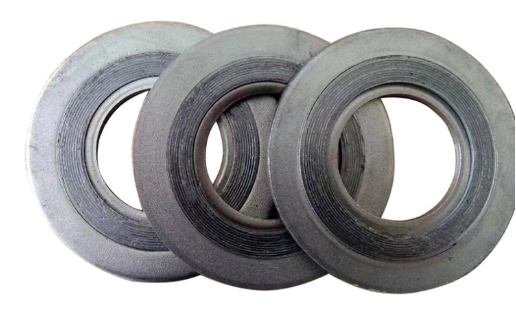

Graphite spiral wound gaskets are divided into four types: basic graphite spiral wound gaskets (HG-600A), graphite spiral wound gaskets with inner rings (HG-600B), graphite spiral wound gaskets with outer rings (HG-600C), and graphite spiral wound gaskets with inner and outer rings (HG-600D). Application range: sealing of flange connections of pipelines, valves, pressure vessels, condensers, heat exchangers, towers, manholes, hand holes, etc. in the petroleum, chemical, metallurgy, electric power, shipbuilding, machinery and other industries
Introduction: Graphite wound gaskets are the most widely used type of metal wound gaskets. Metal graphite wound gaskets usually refer to metal wound gaskets, which are made of high-quality SUS304, SUS316 ("V" shape or "W" shape) metal strips and other alloy materials and graphite, asbestos, polytetrafluoroethylene, non-asbestos and other soft materials alternately and overlappingly spirally wound, and the metal strips are fixed by spot welding at the beginning and end.
Main uses of graphite wound gaskets: Metal graphite wound gaskets are used for sealing of pipes, valves, pump inlets and outlets, various heat exchangers, reaction towers, observation holes, hand holes and other parts that are in contact with steam, oil and gas, solvents, gases, heat transfer media, etc.
Metal graphite wound gaskets use temperature; -200℃ to 650℃.
Metal graphite wound gaskets have varieties and specifications: basic type, with inner ring, with outer ring, with inner and outer rings, special-shaped and other specifications. Size, thickness 3.2, 4.5mm. Nominal diameter, ￠10—￠2000mm
Characteristics of carbon graphite products for machinery:
1. Excellent self-lubrication;
2. Good resistance to chemical corrosion;
3. High thermal conductivity and thermal stability;
4. Sufficient mechanical strength and impact resistance; easy to machine, can be processed into products of various geometric shapes as required.
Graphite wound gaskets are the most widely used type of metal wound gaskets. Metal graphite wound gaskets usually refer to metal wound gaskets, which are made of high-quality SUS304, SUS316 ("V" shape or "W" shape) metal strips and other alloy materials and graphite, asbestos, polytetrafluoroethylene, non-asbestos and other soft materials alternately and overlappingly spirally wound, and the metal strips are fixed at the beginning and end by spot welding.
Graphite spiral wound gaskets are divided into four types: basic graphite spiral wound gaskets (HG-600A), graphite spiral wound gaskets with inner rings (HG-600B), graphite spiral wound gaskets with outer rings (HG-600C), and graphite spiral wound gaskets with inner and outer rings (HG-600D). Application range: sealing of flange connections of pipelines, valves, pressure vessels, condensers, heat exchangers, towers, manholes, hand holes, etc. in the petroleum, chemical, metallurgy, electric power, shipbuilding, machinery and other industries
