Mechanical Seals: Types, Applications, And Selection Guidelines

1.Introduction

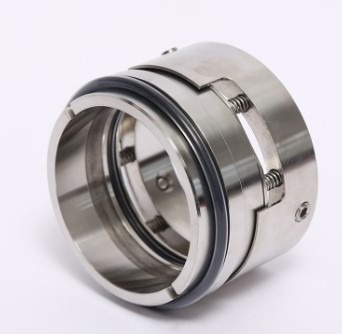

Mechanical seals are precision devices designed to prevent fluid leakage in rotating equipment such as pumps, mixers, and compressors. Unlike traditional gland packing, which requires frequent adjustment and replacement, mechanical seals provide long-term, maintenance-free operation with minimal leakage. This article explores the different types of mechanical seals, their industrial applications, and key considerations for proper selection.

2.Types of Mechanical Seals

Mechanical seals can be classified based on design and application requirements:

Balanced vs. Unbalanced Seals

Balanced seals： handle higher pressures by reducing hydraulic forces on the seal faces, making them ideal for high-pressure applications.

Unbalanced seals： are simpler and cost-effective but limited to low-to-medium pressure conditions.

Pusher vs. Non-Pusher Seals

Pusher seals：use springs or bellows to maintain face contact, accommodating wear over time.

Non-pusher seals：rely on flexible bellows, offering better resistance to vibration and shaft movement.

Single vs. Double Seals

Single seals： are used in non-hazardous fluids where minor leakage is acceptable.

Double seals： provide an additional barrier for toxic, flammable, or high-value fluids, ensuring zero leakage.

Cartridge vs. Component Seals

Cartridge seals： come pre-assembled for easy installation and reduced maintenance errors.

Component seals ： require manual assembly but offer flexibility in customization.

Key Applications of Mechanical Seals

Mechanical seals are critical in industries where leakage prevention is essential:

Oil & Gas:  Pumps handling crude oil, refined products, and chemicals.

Pharmaceuticals: Ensuring sterile conditions in mixers and reactors.

Water Treatment:  Preventing contamination in pumps and agitators.

Food & Beverage: Meeting hygiene standards in processing equipment.

Power Plants: Sealing boiler feed pumps and cooling systems.

3.How to Select the Right Mechanical Seal

Choosing the appropriate seal depends on several factors:

Fluid Properties: Consider viscosity, corrosiveness, and abrasiveness.

Operating Conditions: Temperature, pressure, and speed influence seal material selection.

Equipment Type:  Centrifugal pumps, agitators, and compressors require different seal designs.

Environmental Regulations:  Double seals may be mandatory for hazardous fluids.

4.Conclusion

Mechanical seals are indispensable in modern fluid handling systems, offering superior performance over traditional sealing methods. By understanding the different types and their applications, engineers can select the most suitable seal for optimal efficiency and reliability. Advances in materials and design continue to expand their capabilities, making them a vital component in industrial machinery.
