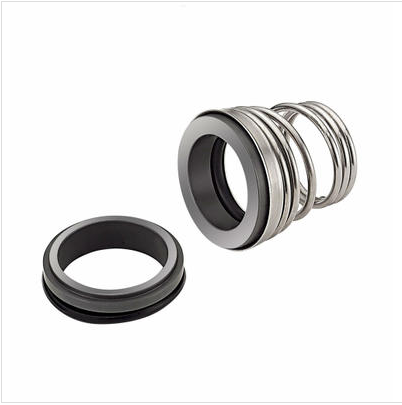

155 O-Ring Single Spring Mechanical Seal Replace Burgmann BT-FN And Vulcan 13 for Pump Use

Mostly Use: water pumps and circulation pumps etc.
Pressure in the sealed chamber:<= 0.8Mpa
Temperature in the sealed chamber: -20oC~100oC
Linear Velocity:<= 15m / sec
Availability:
Quantity:
Inquire Add to Basket

  • 155
  • HAGA
  • 100000 Set/Sets per Month
155 O-Ring Single Spring Mechanical Seal Replace Burgmann BT-FN And Vulcan 13 for Pump Use

Materials:

Rotary Ring:Carbon/SIC/TC/SUS

Stationary Ring:Carbon/SIC/TC

Secondary Seals:NBR/EPDM/VITON

Spring & Other Parts:SS304/SS316
TYPE\SIZE d D D1 L L1
HG155-10 10 20 18.1 20.8 5.5
HG155-11 11 22 20.6 23.8 5.5
HG155-12 12 22 20.6 23.8 5.5
HG155-13 13 25 23.1 28.3 6
HG155-14 14 25 23.1 28.3 6
HG155-15 15 29 26.9 29.3 7
HG155-16 16 29 26.9 30.3 7
HG155-17 17 29 26.9 30.3 7
HG155-18 18 33 30.9 32.3 8
HG155-19 19 33 30.9 33.3 8
HG155-20 20 33 30.9 33.3 8
HG155-21 21 38 35.4 33.3 8
HG155-22 22 38 35.4 33.3 8
HG155-23 23 38 35.4 35.3 8
HG155-24 24 38 35.4 35.3 8
HG155-25 25 40 38.2 35.8 8.5
HG155-28 28 46 43.3 38.3 9
HG155-29 29 46 43.3 39.3 9
HG155-30 30 46 43.3 39.3 9
HG155-32 32 46 43.3 39.3 9
HG155-33 33 48 53.5 50.8 11.5
HG155-35 35 50 53.5 50.8 11.5
HG155-38 38 56 60.5 50.8 11.5
HG155-40 40 58 60.5 50.8 11.5
