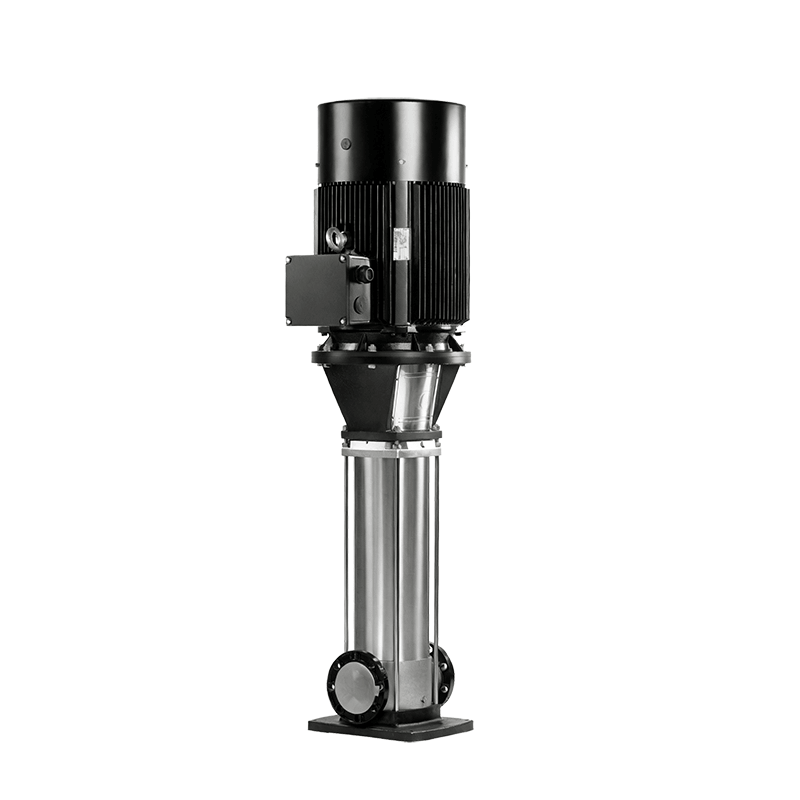

CDL

Rated Flow(m³/h)

1

2

3

4

8

12

16

20

Rated Flow(L/s)

0.28

0.56

0.83

1.1

2.2

3.3

4.4

5.6

Flow Range(m³/h)

0.4–1.8

1–3.5

1.2–4.2

1.5–7

5–12

7–16

8–22

10–28

Flow Range(L/s)

0.11–0.5

0.28–0.97

0.33–1.1

0.42–1.9

1.39–3.3

1.9–4.4

2.2–6.1

2.8–7.8

Max Pressure(bar)

21

23

22

21

21

22

22

23

Max Capacity(kW)

0.37–2.2

0.37–2

0.37–3

0.37–4

0.75–7.5

1.5–11

2.2–15

1.1–18.5

Temp. Range(°C)

-15–105

Max Efficiency(%)

44

46

54

58

62

63

66

69

Product Type

DIN Flange

DN25

DN25

DN25

DN32

DN40

DN50

DN50

DN50

Pipe Thread

R1¼"

R1¼"

R1¼"

R1¼"

R2"

R2½"

R2½"

R2½"

DIN Flange

DN32

DN32

DN32

DN32

DN50

DN50

DN50

DN50

CDL Pipe Connection

DIN Flange

DN25

DN25

DN25

DN32

DN40

DN50

DN50

DN50

Rated Flow(m³/h)

32

45

64

90

120

150

200

Rated Flow(L/s)

8.9

12.5

17.8

25

33.3

41.7

55.6

Flow Range(m³/h)

4.4–11

6.9–15.3

8.8–20

14–30

17–42

22–50

26–67

Max Pressure(bar)

26

30

22

17

16

16

16

Max Capacity(kW)

1.5–30

3–45

4–45

5.5–45

11–75

11–75

18.5–110

Temp. Range(°C)

-15–105

Max Efficiency(%)

74

75

76

77

74

73

79

Pipe Connection

DIN Flange

DN65

DN80

DN100

DN100

DN125

DN125

DN150
