Specification Data
Material | Cotton Fiber and Graphite |
Temperature Range | -50 up to +130 oC atmosphere |
Rotating | 10bar |
Reciprocating | 20bar |
Static | 70bar |
Shaft Speed | 10m/s in rotary |
PH | 6~8 |
Density | 1.25g/cm3 |
Descriptions

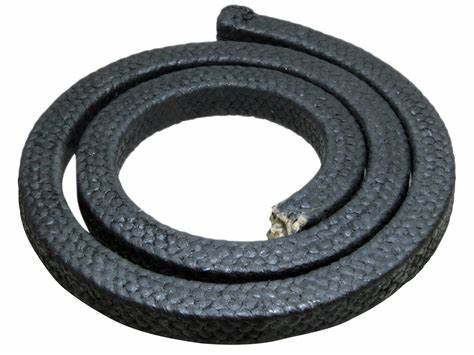

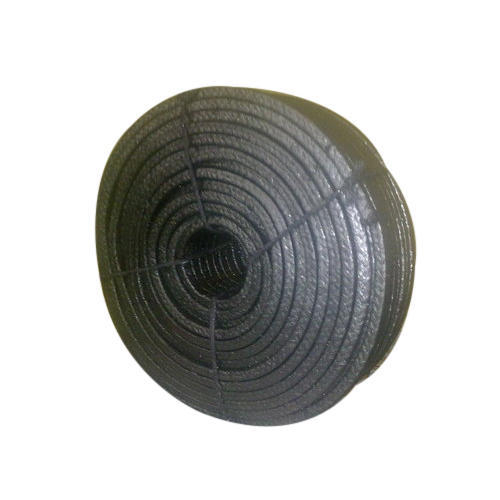

Cotton Fiber Packing with Graphite is braided from cotton yarns which impregnated with special oil with graphite. Graphite reduce the frictional factor, increase the temperature.
The packing is resilient and flexible
Application
Universal packing, for Rotary, reciprocating pumps, in ship building and domestic fresh water pumps. Style SIN210P is designed for hydraulic applications in low and medium pressure pumps and valves, and where contamination is not permitted.
Specification Data
Material | Cotton Fiber and Graphite |
Temperature Range | -50 up to +130 oC atmosphere |
Rotating | 10bar |
Reciprocating | 20bar |
Static | 70bar |
Shaft Speed | 10m/s in rotary |
PH | 6~8 |
Density | 1.25g/cm3 |
Descriptions
Cotton Fiber Packing with Graphite is braided from cotton yarns which impregnated with special oil with graphite. Graphite reduce the frictional factor, increase the temperature.
The packing is resilient and flexible
Application
Universal packing, for Rotary, reciprocating pumps, in ship building and domestic fresh water pumps. Style SIN210P is designed for hydraulic applications in low and medium pressure pumps and valves, and where contamination is not permitted.
a. COTTON GREASE PACKING (YELLOW)
Cotton packing with yellow grease is cotton fiber packing With Oil Pre-impregnated, twisted cotton yarns, intensively re-impregnated during braiding. Flexible and elastic, easy to handle. It’s an economical packing for the limits of application stated
b. COTTON GREASE PACKING (WHITE)
Cotton Grease packing is with high quality cotton thread and made into square pr lattice braids and treated with white chemically stable grease
c. COTTON PACKING WITH GRAPHITE & OIL
Cotton Fiber Packing with Graphite is braided from cotton yarns which impregnated with special oil with graphite. Graphite reduce the frictional factor, increase the temperature. The packing is resilient and flexible
d. COTTON PTFE PACKING
Cotton Packings with PTFE Impregnation Made of long cotton fiber yarn impregnated with PTFE and additives. The packings have a low coefficient of friction & is resilient and flexible (PH:4-10)
a. COTTON GREASE PACKING (YELLOW)
Cotton packing with yellow grease is cotton fiber packing With Oil Pre-impregnated, twisted cotton yarns, intensively re-impregnated during braiding. Flexible and elastic, easy to handle. It’s an economical packing for the limits of application stated
b. COTTON GREASE PACKING (WHITE)
Cotton Grease packing is with high quality cotton thread and made into square pr lattice braids and treated with white chemically stable grease
c. COTTON PACKING WITH GRAPHITE & OIL
Cotton Fiber Packing with Graphite is braided from cotton yarns which impregnated with special oil with graphite. Graphite reduce the frictional factor, increase the temperature. The packing is resilient and flexible
d. COTTON PTFE PACKING
Cotton Packings with PTFE Impregnation Made of long cotton fiber yarn impregnated with PTFE and additives. The packings have a low coefficient of friction & is resilient and flexible (PH:4-10)
