Graphite Packing with Carbon Fiber Corner Packing

a. CARBONIZED FIBER PTFE PACKING

Carbon Fiber Packing a braided packing made of carbonized poly acrylonitrile fiber and finished with PTFE dispersion and lubricant. It covers wide range of application, Relatively economical among non-asbestos packing.

b. CARBONIZED PACKING WITH GRAPHITE

Carbonized packing with graphite is braided by strong carbon fiber after softening treatment and impregnation with the mixture of fine graphite powder, PTFE dispersion and special lubricant. being strong, static and heat-conductive.

c. CARBON PACKING WITH INCONEL WIRE

Carbonized packing with Inconel wire is braided from low-Sulphur expanded carbon yarns, reinforced with nickel wire. good thermal and chemical resistance, very low friction, the wire reinforcement also provides greater mechanical strength.

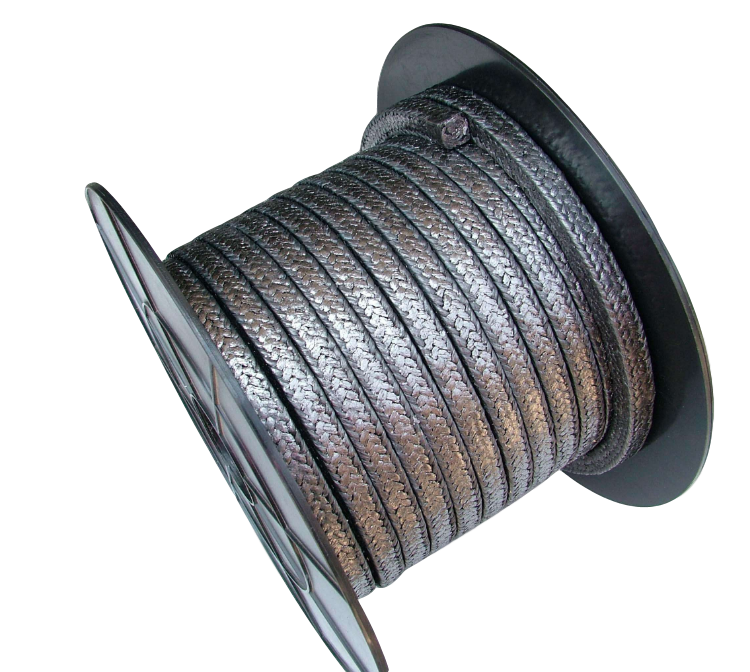

d. GRAPHITE PACKING WITH CARBON FIBER CORNER PACKING

STYLE 5600 is pure flexible graphite packing reinforced in all four corners with high strength carbon fiber and impregnate PTFE. The packing is lattice braided as is the carbon achieving maximum strength. Extrusion is a thing of the past due to the binding effect of the binding effect of the lattice braided carbon corners. A high strength packing, resists extrusions, ideally suited to the high-end valve packing areas.

e. CARBON PACKING WITH PTFE AND GRAPHITE IMPREGNATED

STYLE 6900HG braided from high carbon continuous yarns after softening, impregnated with proprietary lubricants and graphite particles, which fill woids, act as a break-in lubricant, and block leakage.
