Specification Data
| Max Temp.(℃) | 250 to 450 |
| Max pressure(bar) | 80 |
| Density (g/cm3) | 1.4-1.6 |
| Speed (m/s) | 10 |
| PH | 4-10 |
| Size (mm) | 4-50 |
| Package | 5kgs/roll, or 10kgs/roll, 20kgs/carton |
Descriptions

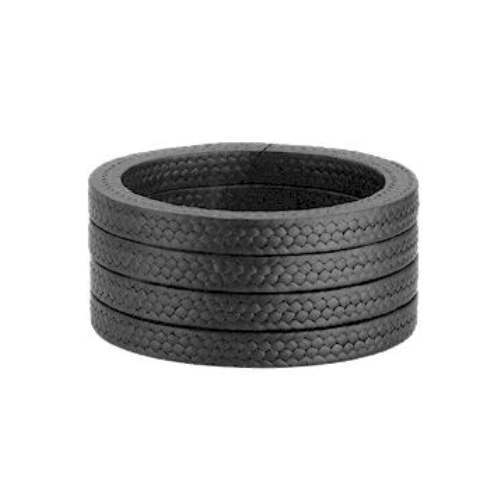

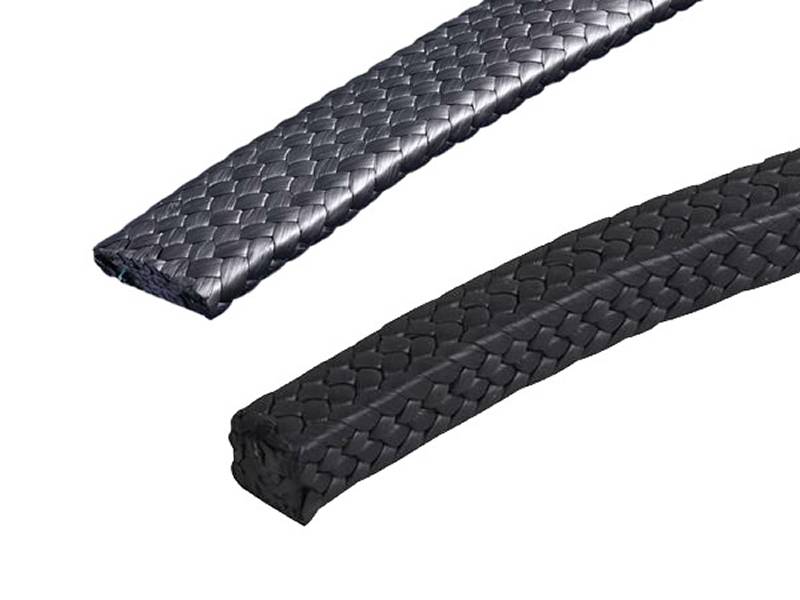

It is a braided packing made of asbestos yarns,after braided,this packing is thoroughly impregated piece by piece with dry graphite,and externally coated with pure graphite.it is suitable for specific employment in the presence of high temperatures and high pressures. It is utilized on valves,tap equipment,for oils,superheated steam,solvents,hydrocabons,gas,ammonia,abrasive liquids. Asbestos graphited packing.
Applications
To be used as a stuffing box in pumps (especially boiler feed pumps) and in valves. Resistant to alkaline solutions, inert fluids, steam, gases, hot water and salt solutions
Specification Data
| Max Temp.(℃) | 250 to 450 |
| Max pressure(bar) | 80 |
| Density (g/cm3) | 1.4-1.6 |
| Speed (m/s) | 10 |
| PH | 4-10 |
| Size (mm) | 4-50 |
| Package | 5kgs/roll, or 10kgs/roll, 20kgs/carton |
Descriptions
It is a braided packing made of asbestos yarns,after braided,this packing is thoroughly impregated piece by piece with dry graphite,and externally coated with pure graphite.it is suitable for specific employment in the presence of high temperatures and high pressures. It is utilized on valves,tap equipment,for oils,superheated steam,solvents,hydrocabons,gas,ammonia,abrasive liquids. Asbestos graphited packing.
Applications
To be used as a stuffing box in pumps (especially boiler feed pumps) and in valves. Resistant to alkaline solutions, inert fluids, steam, gases, hot water and salt solutions
