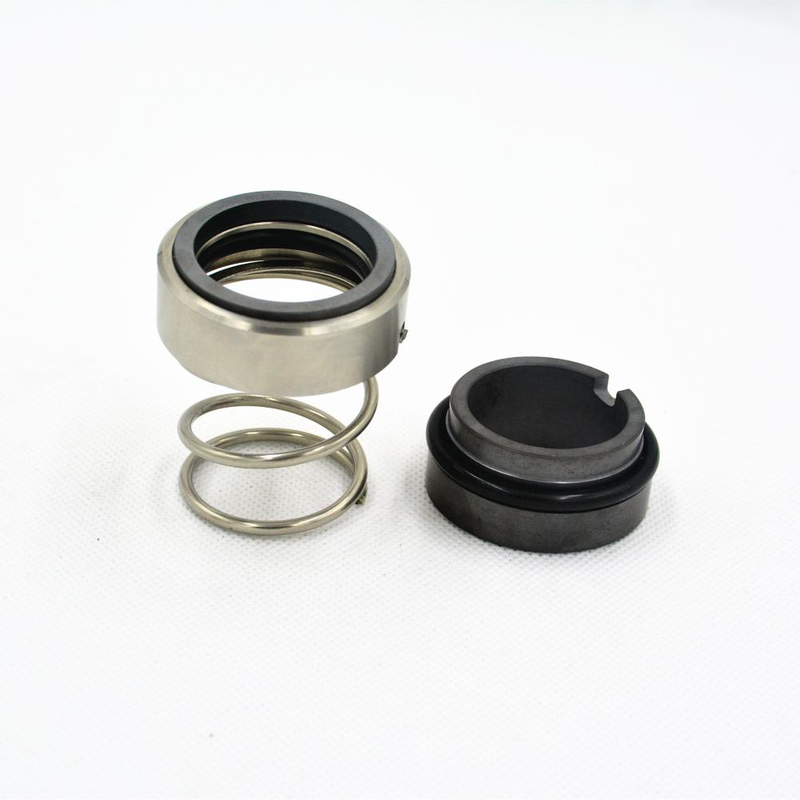

Detail High Quality Single Conical Spring M2N Mechanical Seal

Stationary Seats:
1.M2N seal equip with "G9" seat(DIN24960)
2.Stationary seal alternative:"G6" (DIN24960) and "G4" seats
Design Features:
1.Single seal
2.Unbalanced
3.Conical spring
4.Dependent on direction
5.To DIN 24960
Availability:
Quantity:
Inquire Add to Basket

  • M2N

  • HAGA

  • 100000 Set/Sets per Month

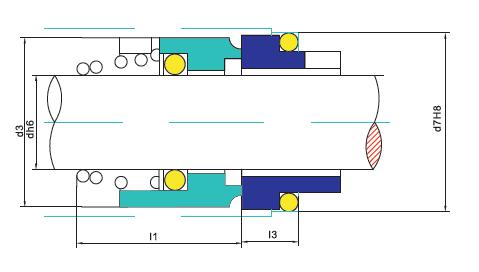

M2N-1

Stationary Seat(SiC/99%Ceramic)

Rotary Ring(Resin Carbon)

Secondary Seal (NBR/EPDM/VITON/PTEE)

Spring & Other Parts(SUS304/SUS316)



Seal size   d(mm) d3 d7 l1 l3
10 20 21 17.5 10
12 22 23 17.5 10
14 25 25 17.5 10
16 27 27 19.5 10
18 30 33 20.5 11.5
20 32 35 22 11.5
22 35 37 23.5 11.5
24 38 39 25 11.5
25 40 40 26.5 11.5
28 43 43 26.5 11.5
30 47 45 26.5 11.5
32 48 48 28.5 11.5
35 53 50 28.5 11.5
38 56 56 33.5 14
