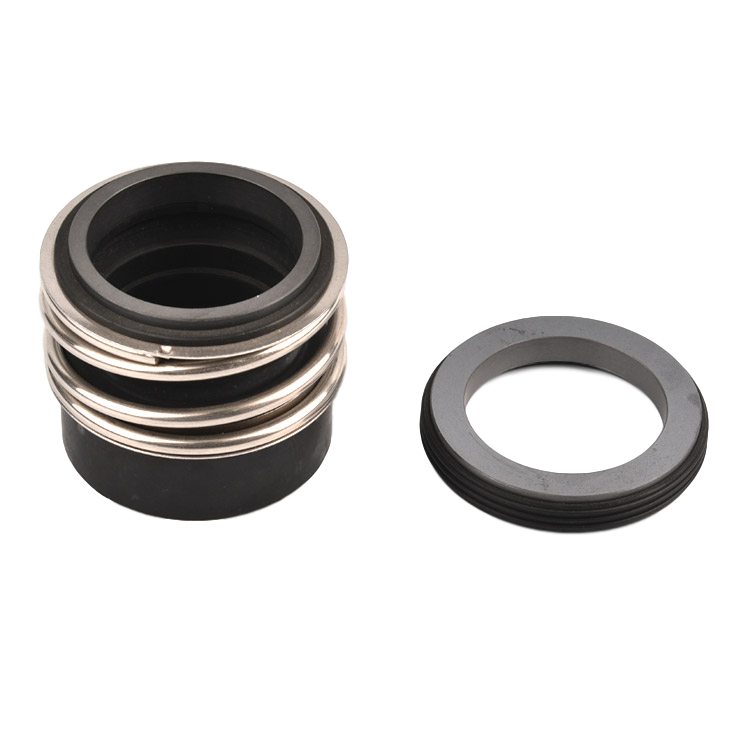

HG MG13 O-Ring Single Spring Industrial Pump Mechanical Seal

Application: all types of roating equipment,
such as centrifugal pumps, agitators, for most general and light chemical duties,
wherever an elastomer secondary seal can be used.
Pressure in the sealed chamber:<= 1.2Mpa
Temperature in the sealed chamber: -30oC~220oC
Linear Velocity:<= 12m / sec
Design features: elastomeric bellows seal design including kinds of stationary ring,

Availability:

Quantity:


Inquire Add to Basket

Model: MG13
Brand: HAGA
Supply Ability: 100000 Set/Sets per Month

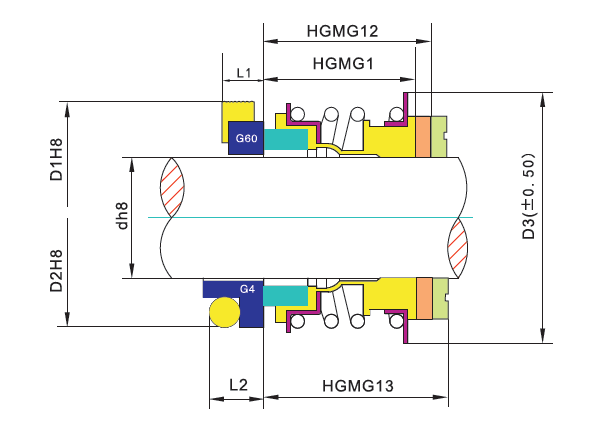

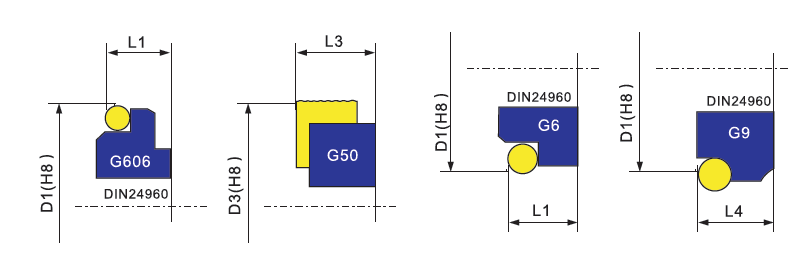

Product Dimension

Materials:

Rotary Ring:Carbon/SIC/TC/SUS

Stationary Ring:Carbon/SIC/TC

Secondary Seals:NBR/EPDM/VITON

Spring & Other Parts:SS304/SS316

HG MG13 O-Ring Single Spring Industrial Pump Mechanical Seal

d	D	D1	D2	D3	L1	L2	L3	L4	HGG1	HGG12	HGG13
10	22	21	19.2	24.6	6.5	6.5	9	10	14.7	26	33.5
12	24.5	23	21.6	27.8	6.5	5.5	9	10	15.2	26	33.5
14	28	25	24.6	30.95	6.5	5.5	10.5	10	17.2	28.5	33.5
15	28	27	24.6	30.95	6.5	6.5	10.5	10	17.2	28.5	33.5
16	28	27	28	29	6.5	7.5	10.5	10	17.2	28.5	33.5
18	31.5	33	30	34.15	7.5	8	10.5	11.4	19.7	30.1	37.7
19	36.5	35	35	34.15	7.5	7.5	10.5	11.4	21.7	30.1	37.7
20	36.5	35	35	35.7	7.5	7.5	10.5	11.4	21.7	30.1	37.7
22	36.5	37	35	37.3	7.5	7.5	10.5	11.4	21.7	30.1	37.7
24	42	39	38	40.5	7.5	7.5	10.5	11.4	22.7	32.7	42.7
25	42	40	38	42	7.5	7.5	10.5	11.4	23.2	32.7	42.7
28	48.5	43	42	47.5	7.5	9	12	11.4	26.7	35.2	42.7
30	48.5	45	45	50.8	7.5	10.5	12	11.4	26.7	35.2	42.7
32	53	48	48	52	7.5	10.5	12	11.4	27.7	35.2	47.7
33	53	48	50	54	7.5	11	12	11.4	27.7	35.2	47.7
35	56.5	50	52	54	7.5	11	12	11.4	28.7	35.2	47.7
38	58.5	56	55	58	9	10.5	12	14	30.2	36.2	46.2
40	61.5	58	58	60.35	9	10.8	12	14	30.2	36.2	46.2
42	65	61	62	63.5	9	12	12	14	30.2	36.2	51.2
43	65	61	62	63.5	9	12	12	14	30.2	36.2	51.2
45	67.5	63	64	63.5	9	11.5	12	14	30.2	36.2	51.2
48	70	66	68.4	66.7	9	11.5	12	14	30.7	36.2	51.2
50	73.5	70	69.3	69.85	9.5	11.5	13.5	15	30.7	38.2	50.7
53	78	73	72.3	73.05	11	12.5	13.5	15	33.5	36.7	59.2
55	80.5	75	75.4	78	11	13.5	13.5	15	35.2	36.7	59.2
58	85	78	78.4	79.4	11	13.5	13.5	15	37.2	41.7	59.2
60	88	80	80.4	79.4	11	13.5	13.5	15	38.2	41.7	59.2
65	93	85	85.4	92.1	11	13	16	15	40.2	41.7	69.2
68	96	80	92.5	95.25	11.5	13.7	16	18	40.2	41.3	69
70	99	92	92	95.25	11.5	13	16	18	40.2	49	69
75	10.65	97	99	101.6	11.5	14	16	18	40.2	49	69
80	111.5	105	104	108.15	12	15	20	18.3	40.2	48.2	78.2
85	119.5	110	109	117.5	14	15	20	18.3	41.2	46.2	76.2
90	126.5	115	114	123.85	14	15	20	18.3	45.2	51.2	76.2
95	131.5	120	120.3	127	14	16	20	17.3	46.2	51.2	76.2
100	136.5	125	123.3	133.35	14	16	20	17.3	47.2	51.2	76.2
