 | MATERIAL: Stationary Ring(Ceramic/SiC/TC) Rotary Ring(Carbon/SiC/TC) Secondary Seal(NBR/EPDM/VITON) Spring & Other Parts(SUS304/SUS316) |

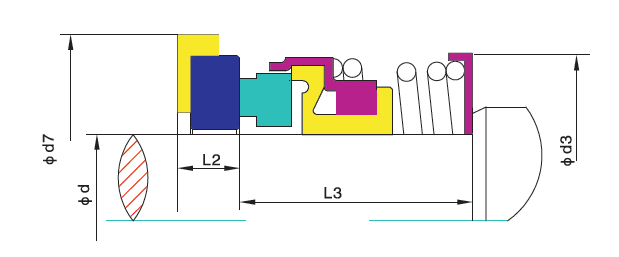

| Seal size (inches) | d | D3 | L3 | D7 | L2 |
| HG21- 1/2" | 12.7 | 23.88 | 20.82 | 25.4 | 7.92 |
| HG21- 5/8" | 15.88 | 26.7 | 22.43 | 31.75 | 10.3 |
| HG21- 3/4" | 19.05 | 30.1 | 22.43 | 34.93 | 10.3 |
| HG21- 7/8" | 22.23 | 33.4 | 24 | 38.1 | 10.3 |
| HG21- 1" | 25.4 | 43.18 | 25.6 | 41.28 | 11.1 |
| HG21- 1 1/8" | 28.58 | 46.28 | 27.17 | 44.45 | 11.1 |
| HG21- 1 1/4" | 31.75 | 49.4 | 27.17 | 47.63 | 11.1 |
| HG21- 1 3/8" | 34.93 | 52.58 | 28.78 | 50.8 | 11.1 |
| HG21- 1 1/2" | 38.1 | 55.8 | 28.78 | 53.93 | 11.1 |
| HG21- 1 5/8" | 41.28 | 62.2 | 35.13 | 60.33 | 12.7 |
| HG21- 1 3/4" | 44.45 | 66 | 35.13 | 63.5 | 12.7 |
| HG21- 1 7/8" | 47.63 | 66.6 | 38.3 | 66.68 | 12.7 |
| HG21- 2" | 50.8 | 73 | 38.3 | 69.85 | 12.7 |
| HG21- 2 1/8" | 53.98 | 73.3 | 43.05 | 76.2 | 14.3 |
| HG21- 2 1/4" | 57.15 | 78.41 | 43.05 | 79.38 | 14.3 |
| HG21- 2 3/8" | 60.33 | 82 | 46.25 | 82.55 | 14.3 |
| HG21- 2 1/2" | 63.5 | 84.87 | 46.25 | 85.73 | 14.3 |
| HG21- 2 5/8" | 66.68 | 88.4 | 49.4 | 85.73 | 15.9 |
| HG21- 2 3/4" | 69.85 | 92.58 | 49.4 | 88.9 | 15.9 |
| HG21- 2 7/8" | 73 | 94.85 | 52.57 | 95.25 | 15.9 |
| HG21- 3" | 76.2 | 101.9 | 52.57 | 98.43 | 15.9 |
 | MATERIAL: Stationary Ring(Ceramic/SiC/TC) Rotary Ring(Carbon/SiC/TC) Secondary Seal(NBR/EPDM/VITON) Spring & Other Parts(SUS304/SUS316) |
| Seal size (inches) | d | D3 | L3 | D7 | L2 |
| HG21- 1/2" | 12.7 | 23.88 | 20.82 | 25.4 | 7.92 |
| HG21- 5/8" | 15.88 | 26.7 | 22.43 | 31.75 | 10.3 |
| HG21- 3/4" | 19.05 | 30.1 | 22.43 | 34.93 | 10.3 |
| HG21- 7/8" | 22.23 | 33.4 | 24 | 38.1 | 10.3 |
| HG21- 1" | 25.4 | 43.18 | 25.6 | 41.28 | 11.1 |
| HG21- 1 1/8" | 28.58 | 46.28 | 27.17 | 44.45 | 11.1 |
| HG21- 1 1/4" | 31.75 | 49.4 | 27.17 | 47.63 | 11.1 |
| HG21- 1 3/8" | 34.93 | 52.58 | 28.78 | 50.8 | 11.1 |
| HG21- 1 1/2" | 38.1 | 55.8 | 28.78 | 53.93 | 11.1 |
| HG21- 1 5/8" | 41.28 | 62.2 | 35.13 | 60.33 | 12.7 |
| HG21- 1 3/4" | 44.45 | 66 | 35.13 | 63.5 | 12.7 |
| HG21- 1 7/8" | 47.63 | 66.6 | 38.3 | 66.68 | 12.7 |
| HG21- 2" | 50.8 | 73 | 38.3 | 69.85 | 12.7 |
| HG21- 2 1/8" | 53.98 | 73.3 | 43.05 | 76.2 | 14.3 |
| HG21- 2 1/4" | 57.15 | 78.41 | 43.05 | 79.38 | 14.3 |
| HG21- 2 3/8" | 60.33 | 82 | 46.25 | 82.55 | 14.3 |
| HG21- 2 1/2" | 63.5 | 84.87 | 46.25 | 85.73 | 14.3 |
| HG21- 2 5/8" | 66.68 | 88.4 | 49.4 | 85.73 | 15.9 |
| HG21- 2 3/4" | 69.85 | 92.58 | 49.4 | 88.9 | 15.9 |
| HG21- 2 7/8" | 73 | 94.85 | 52.57 | 95.25 | 15.9 |
| HG21- 3" | 76.2 | 101.9 | 52.57 | 98.43 | 15.9 |
