Pac Type Pump for FLOWSERVE 16 Replacement 166 Single Spring Mechanical Seal

OPERATING LIMITS
Temperature: -30℃~+200℃
Pressure: ≤1MPa
Speed: ≤10m/s
Availability:
Quantity:
Inquire Add to Basket

  • HG166
  • HAGA
  • 100000 Set/Sets per Month
Pac Type Pump for FLOWSERVE 16 Replacement 166 Single Spring Mechanical Seal

MATERIAL

Stationary Ring(Ceramic/SiC/TC)

Rotary Ring(Plastic carbon/SiC/TC)

Secondary Seal(NBR/EPDM/VIT)

Spring & Other Parts(SUS304/SUS316)

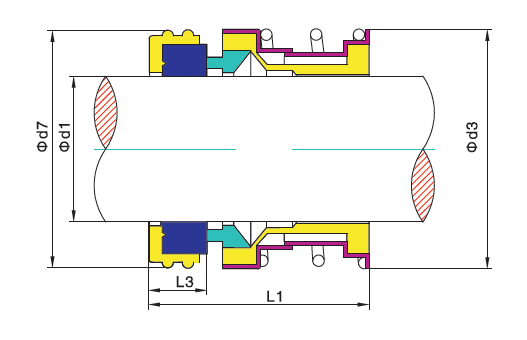

Model d1 d3 d7 L1 L3
HG166-3/8" 9.53 23.29 22.23 23.8 7.14
HG166-1/2" 12.7 23.29 25.4 23.01 6.35
HG166-5/8" 15.88 30.1 31.75 28.55 10.31
HG166-3/4" 19.05 33.07 34.93 28.55 10.31
HG166-7/8" 22.23 36.3 38.1 30.94 10.31
HG166-1" 25.4 39.42 41.28 31.72 11.1
