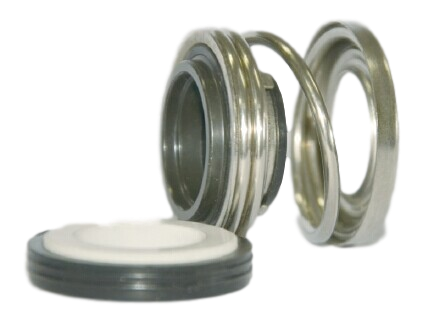

High Quality Single Spring Seal Type 70 Water Pump Mechanical Seals

Availability:
Quantity:
Inquire Add to Basket

  • HG70

  • HAGA

  • 100000 Set/Sets per Month

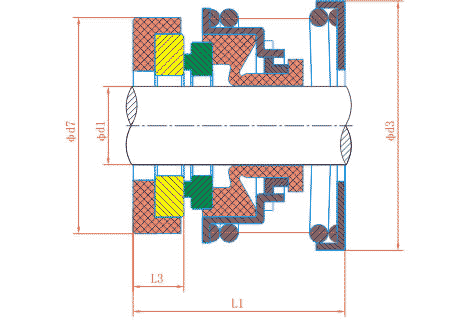

Model d1 d7 d3 L1 L3
HG70-13 13 29.5 31.5 32 8
HG70-14 14 29.5 31.5 32 8
HG70-15 15 29.5 31.5 26/32 8
HG70-16 16 29.5 31.5 26/32 8


HG70 Multi Spring Mechanical Seal  Operating Limits

Temperature: -30℃~+200℃

Pressure: ≤0.6MPa

Speed: ≤10m/s




HG70 Multi Spring Mechanical Seal  Material

Stationary Ring(Ceramic/SiC/TC)

Rotary Ring(Plastic Carbon/Carbon/SiC/TC)

Secondary Seal(NBR/EPDM/VITON)

Spring & Other Parts(SUS304/SUS316)
