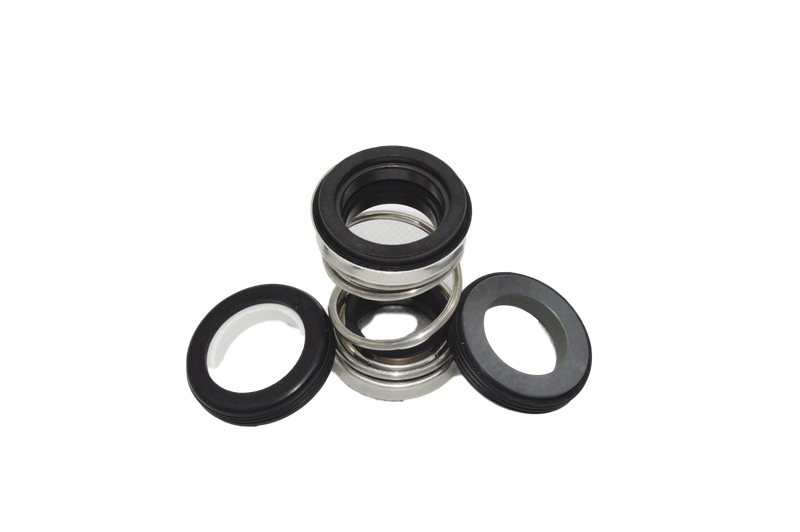

HG 208 Dual Double End Elastomer Balanced Mechanical Seal

HG208 Multi Spring Mechanical Seal Operating Limits
Temperature: -30℃~+200℃
Pressure: ≤1.2MPa
Speed: ≤5m/s
Availability:
Quantity:
Inquire Add to Basket

  • HG208
  • HAGA
  • 100000 Set/Sets per Month

HG 208 Dual Double End Elastomer Balanced Mechanical Seal


HG208 Multi Spring Mechanical Seal Material

Stationary Ring(Ceramic/SiC/TC)

Rotary Ring(Plastic Carbon/Carbon/SiC/TC)

Secondary Ring(NBR/VITON)

Spring and Retainer(SUS304/SUS316)

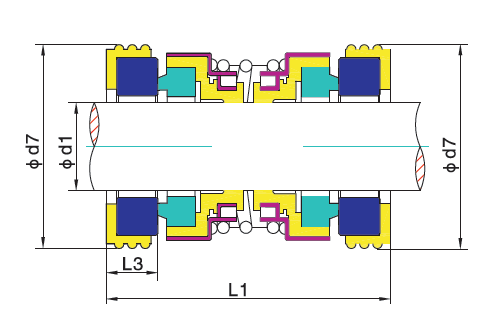

Model d1 d7 L1 L3
HG208-10 10 21 30 5.5
HG208-12 12 23 30 5.5
HG208-14 14 26/28 38 6.5
HG208-16 16 28/30 38 6.5
HG208-18 18 33/35 38 8
HG208-20 20 35/36 40 8
HG208-25 25 40/41 48 8
HG208-30 30 45 51 8
HG208-35 35 50 51 8
HG208-40 40 58 58 9
HG208-45 45 63 58 9
