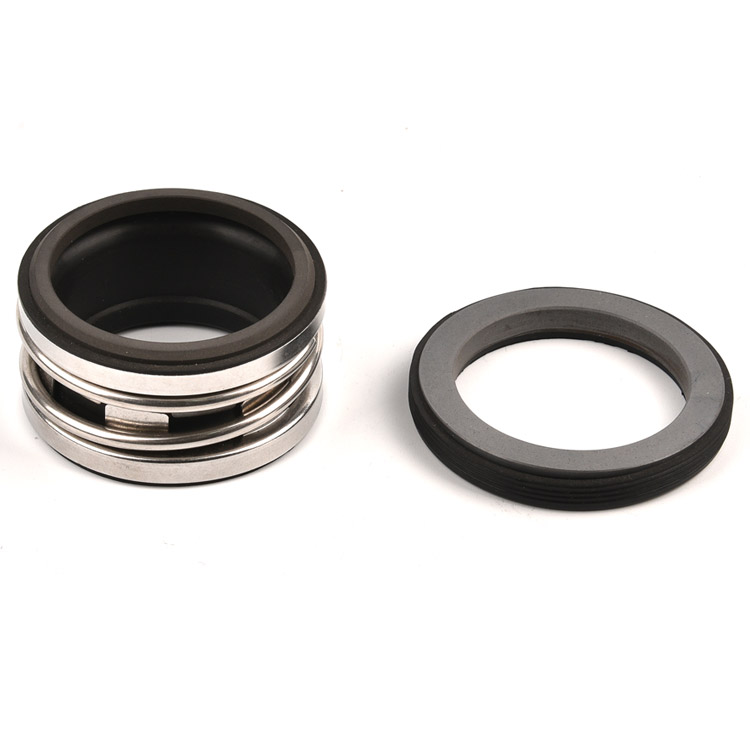

Type 2100 Mechanical Seal

OPERATING LIMITS
Temperature: -30℃～+200℃
Pressure: ≤1.2MPa
Speed: ≤10m/s
Availability:
Quantity:
Inquire Add to Basket

  • type 2100
  • HAGA
  • 100000 Set/Sets per Month

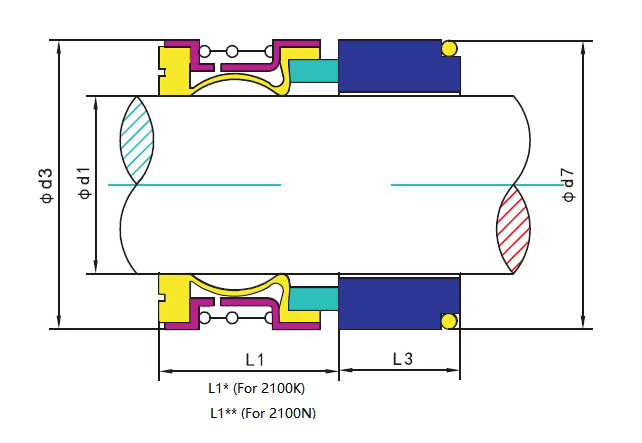

type 2100 2


MATERIAL:

Stationary Ring(Ceramic/SiC/TC)

Rotary Ring(Carbon/SiC/TC)

Secondary Seal(NBR/EPDM/VITON)

Spring & Other Parts(SUS304/SUS316)







2100 2100K 2100N
Model d1 d3 d7 L1 L1* L1** L3
HG2100-16 16 26 27 15 29 34 12
HG2100-18 18 32 33 20 31.5 39 13.5
HG2100-20 20 34 35 20 31.5 39 13.5
HG2100-22 22 36 37 20 31.5 39 13.5
HG2100-24 24 38 39 20 34 44 13.5
HG2100-25 25 39 40 20 34 44 13
HG2100-28 28 42 43 26 36.5 44 12.5
HG2100-30 30 44 45 26 35.5 43 12
HG2100-32 32 46 48 26 35.5 48 12
HG2100-33 33 47 48 26 35.5 48 12
HG2100-35 35 49 50 26 34.5 47 12
HG2100-38 38 54 56 30 37 47 13
HG2100-40 40 56 58 30 37 47 13
HG2100-43 43 59 61 30 37 52 13
HG2100-45 45 61 63 30 37 52 13
HG2100-48 48 64 66 30 35 50 13
HG2100-50 50 66 70 30 37.5 50 13.5
HG2100-53 53 69 73 30 37.5 60 13.5
HG2100-55 55 71 75 30 37.5 60 13.5
HG2100-60 60 80 80 33 40.5 58 13.5
HG2100-63 63 83
33 40.5 58
HG2100-65 65 85 85 33 40.5 68 13.5
HG2100-70 70 90 92 33 48 68 14.5
HG2100-75 75 99 97 40 48 68 14.5
HG2100-80 80 104
40 47.5 77.5
HG2100-85 85 109
40 47.5 77.5
HG2100-90 90 114
40 52.5 77.5
HG2100-100 100 124
40 52.5 77.5
