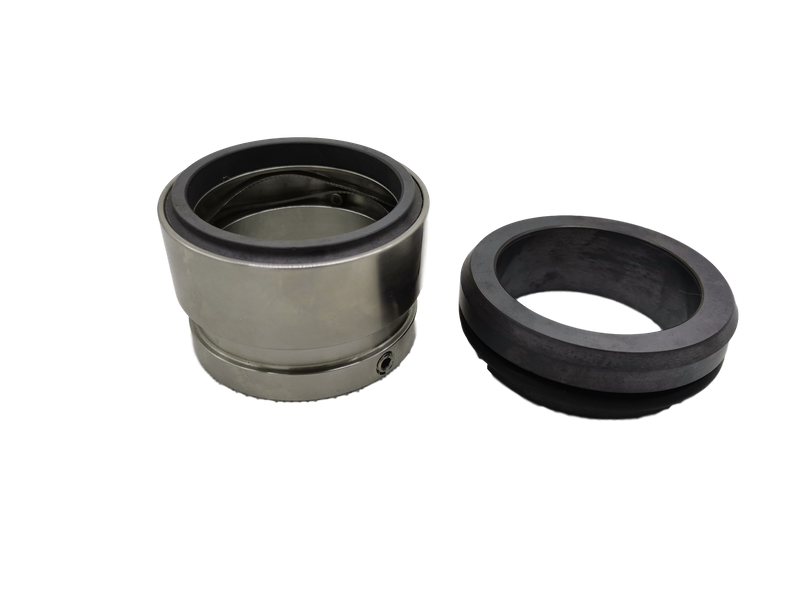

Burgmann HJ92N Wave Spring Mechanical Seal

Availability:
Quantity:
Inquire Add to Basket

  • HJ92N
  • HAGA
  • 100000 Set/Sets per Month

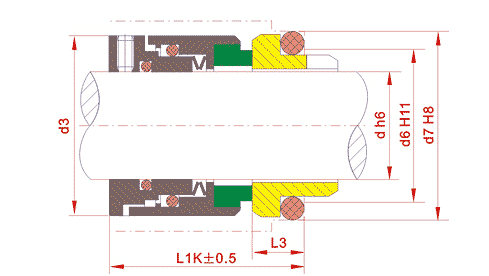

Seal size d(mm) d3 d6 d7 L3 L1K
18 32 27 33 15 37.5
20 34 29 35 15 37.5
22 36 31 37 15 37.5
24 38 33 39 15 40
25 39 34 40 15 40
28 42 37 43 15 42.5
30 44 39 45 15 42.5
32 47 42 48 15 42.5
33 47 42 48 15 42.5
35 49 44 50 15 42.5
38 54 49 56 16 45
40 56 51 58 16 45
43 59 54 61 16 45
45 61 56 63 16 45
48 64 59 66 16 45
50 66 62 70 17 47.5
53 69 65 73 17 47.5
55 71 67 75 17 47.5
58 78 70 78 18 52.5
60 80 72 80 18 52.5
63 83 75 83 18 52.5
65 85 77 85 18 52.5
68 88 81 90 18.5 52.5
70 90 83 92 19 60
75 99 88 97 19 60
80 104 95 105 19 60
85 109 100 110 19 60
90 114 105 115 20.5 65
95 119 110 120 20.5 65
100 124 115 125 20.5 65



HJ92N Multi Spring Mechanical Seal  Operating Limits

Temperature: -20℃～+180℃

Pressure: ≤2.5MPa

Speed: ≤20m/s

Medium: Liquid rich in solid impurity or high viscosity,such as refine sugar,sewage and paper industry.




HJ92N Multi Spring Mechanical Seal  Material

Stationary Ring(Ceramic/SiC/TC)

Rotary Ring(SiC/TC/Carbon)

Secondary Seal(VITON/PTFE+VITON)

Spring & Other Parts(SUS304/SUS316)
