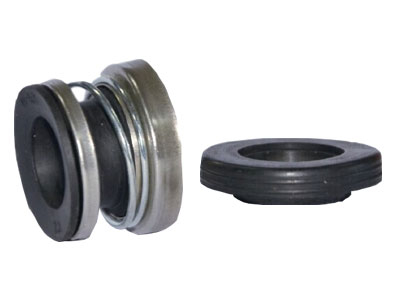

HG 103 Rubber Bellows O-Ring Single Spring Mechanical Seal

HG 103 Rubber Bellows O-Ring Single Spring Mechanical Seal

Share to:

HG 103 Rubber Bellows O-Ring Single Spring Mechanical Seal

MG1 Multi Spring Mechanical Seal Operating Limits
Temperature: -20℃~+120℃
Pressure: ≤1.2MPa
Speed: ≤10m/s

Availability:

Quantity:


Inquire Add to Basket

Model: HG103
Brand: HAGA
Supply Ability: 100000 Set/Sets per Month

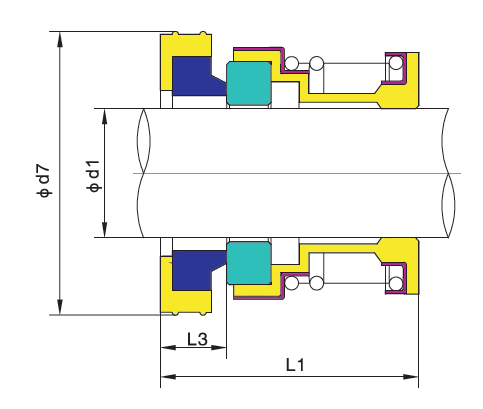

Product Dimension

HG 103 Rubber Bellows O-Ring Single Spring Mechanical Seal

MG1 Multi Spring Mechanical Seal Material

Stationary Ring(Ceramic/SiC/TC)

Rotary Ring(Carbon/SiC/TC)

Secondary Seal(NBR/EPDM/VITON)

Spring & Other Parts(SUS304/SUS316)

Model	d1	d7	L1	L3
HG103-10	10	25	20.5	4.5
HG103-12	12	26	20.5	5.5
HG103-12L	12	26	20.5	7.5
HG103-14	14	30	20.5	7
HG103-17	17	35	20.5	7
HG103-18	18	35	20.5	7
