HG 104 Rubber Bellows O-Ring Single Spring Mechanical Seal

Availability:
Quantity:
Inquire Add to Basket

  • HG104
  • HAGA
  • 100000 Set/Sets per Month

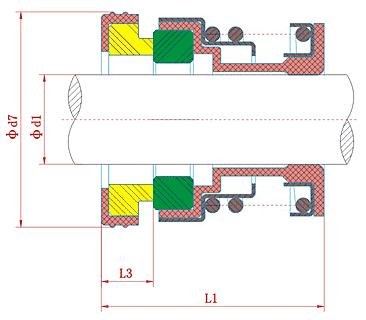

Model d1 d7 L1 L3
HG104-9 9 22 20 5.5
HG104-10 10 22 20 5.5
HG104-11 11 24 20 5.5
HG104-12 12 24 20 5.5
HG104-14 14 26 25 7
HG104-15 15 28 25 7
HG104-16 16 28 25 7
HG104-17 17 34 25 7
HG104-18 18 34 25 7
HG104-19 19 36 25 7
HG104-20 20 36 25 7
HG104-22 22 38 25 7
HG104-25 25 41 37 9
HG104-30 30 46 37 9
HG104-35 35 51 37 9
HG104-40 40 60 40 10.5
HG104-45 45 65 40 10.5



HG104 Multi Spring Mechanical Seal  Operating Limits

Temperature: -30℃~+200℃

Pressure: ≤0.8MPa

Speed: ≤5m/s




HG104 Multi Spring Mechanical Seal  Material

Stationary Ring(Plastic Carbon)

Rotary Ring(Ceramic)

Secondary Ring(NBR/VITON)

Spring and Retainer(S.S/Copper)
