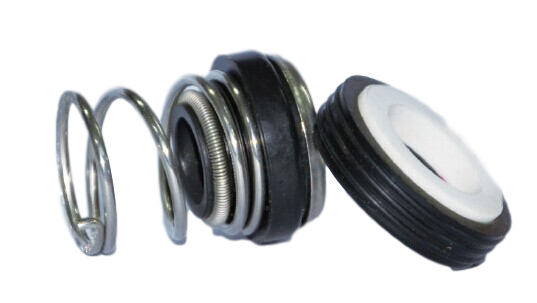

HG 156 Single Spring Elastomer Mechanical Seal with O-Ring

Availability:
Quantity:
Inquire Add to Basket

  • HG156
  • HAGA
  • 100000 Set/Sets per Month

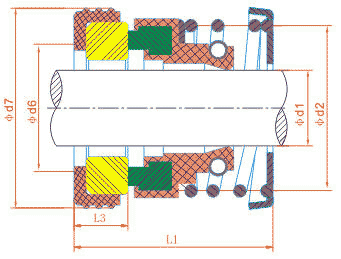

Model d1 d2 d6 d7 L1 L3
HG156-8 8 16 13 18/21 18 7
HG156-9 9 20 16 21 23 7
HG156-10 10 20 16 20/22/24 23 7
HG156-11 11 20 16 24 23 7
HG156-12 12 22.5 17 26 24 7
HG156-13 13 22.5 17 26 24 7
HG156-14 14 24.5 21 28/30 25 7
HG156-15 15 24.5 21 28/30 25 7
HG156-16 16 28.5 22 32 27 8
HG156-17 17 28.5 22 32 27 8
HG156-18 18 31.5 25 35 29 8
HG156-19 19 31.5 25 35 29 8
HG156-20 20 33.5 27 38 31 8
HG156-22 22 34.5 29 40 32 8
HG156-25 25 37.5 32 44 33 9
HG156-28 28 40.5 34 46 34 9
HG156-30 30 44.5 38 50 35 9
HG156-32 32 47.5 40 54 37 9
HG156-35 35 50.5 44 58 40 10
HG156-38 38 53.5 46 60 42 10
HG156-40 40 56.5 48 64 43 10
HG156-45 45 61.5 52 66 45 10
HG156-50 50 66.5 58 72 47 10


HG104 Multi Spring Mechanical Seal  Operating Limits

Temperature: -30℃~+200℃

Pressure: ≤0.8MPa

Speed: ≤5m/s




HG104 Multi Spring Mechanical Seal  Material

Stationary Ring(Plastic Carbon)

Rotary Ring(Ceramic)

Secondary Ring(NBR/VITON)

Spring and Retainer(S.S/Copper)
